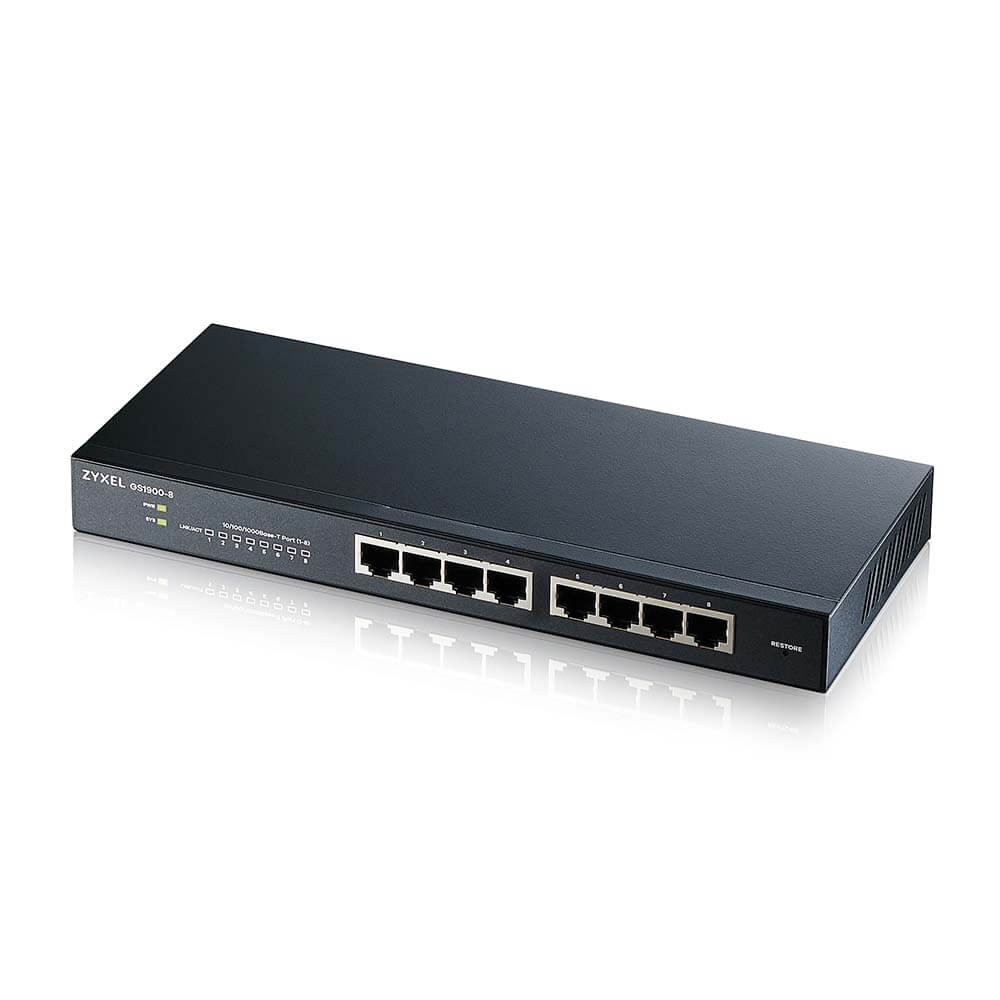

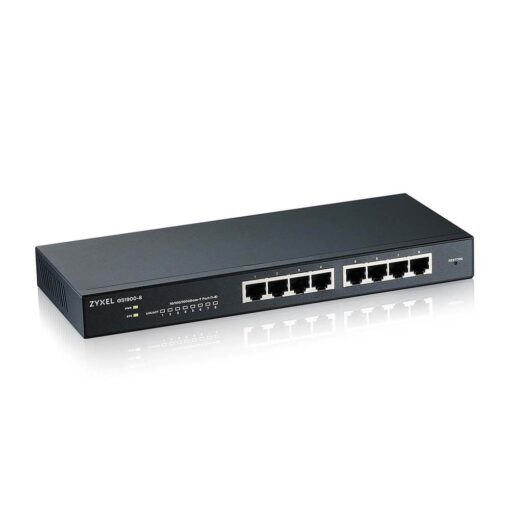

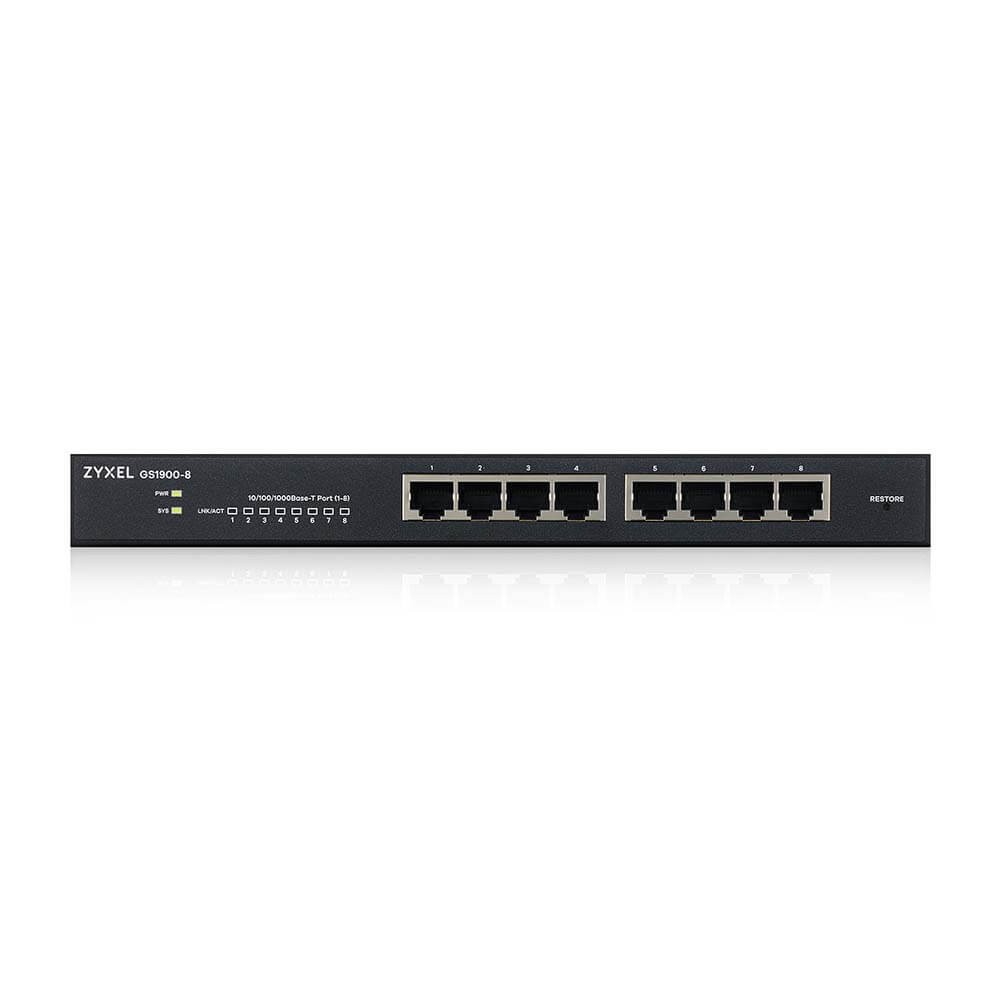

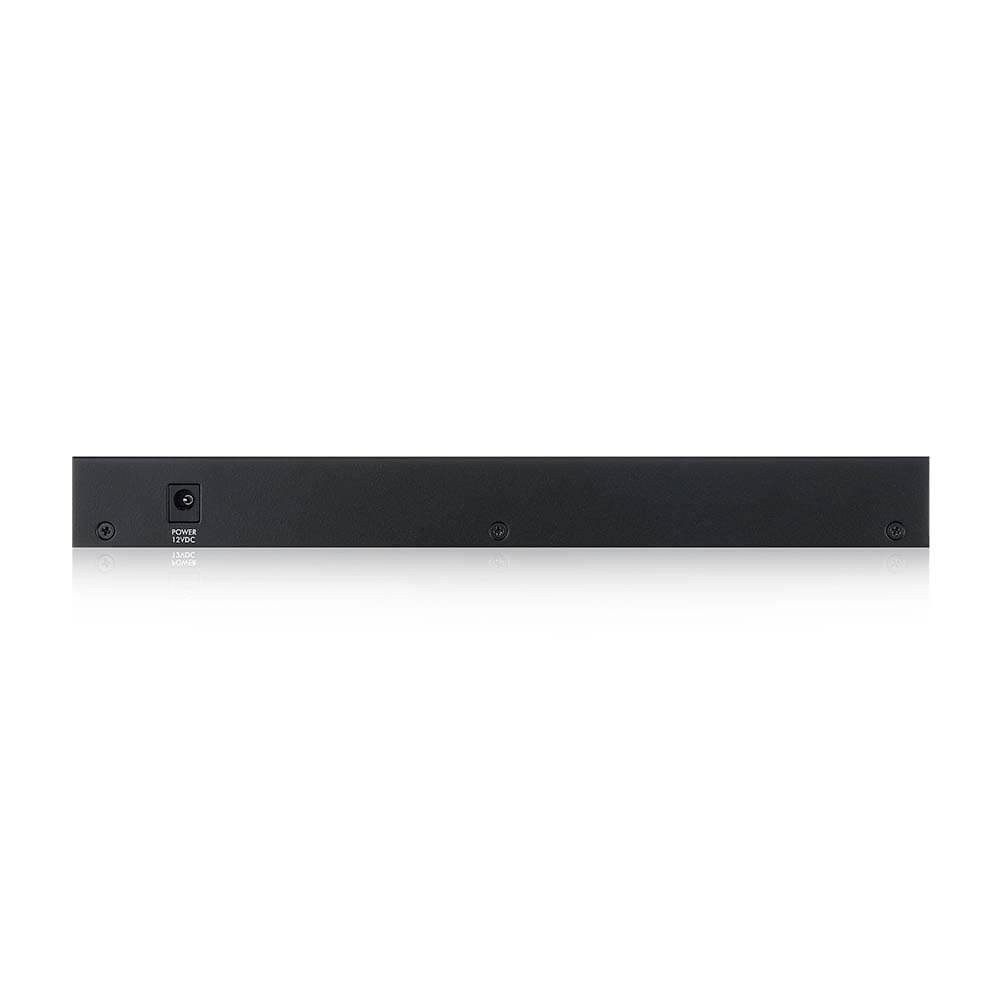

ZyXEL GS-1900-8 switch 8x1GbE RJ-45

Almost silent operation

The GS1900 series includes both fanless models and models with built-in intelligent fans. The intelligent fan is designed to automatically adjust its speed based on the temperature of the device. You can barely hear the sound when the switch is working. It is perfect for your office environment.

Fast gigabit performance built for small and medium businesses

The GS1900 is a series of switches with full non-blocking throughput up to 1Gbps per port. The perfect upgrade for an unmanaged switch, it's a great choice for small and medium businesses that want to run high-speed business network applications at full wired speed without blocking.

Easy and intuitive management

Smart Managed GS1900 Series Switch with web interface to easily manage advanced features such as VLAN, QoS, IGMP Snooping, Link Aggregation (LAG), IPv6 and DoS Prevention. In addition, a user-friendly wizard helps you quickly go through setup, configuration and even advanced settings.

• IEEE 802.1Q VLAN tagging
• IEEE 802.3ad LACP
• Guest VLAN
• Voice VLAN
• Storm control
• IEEE 802.1p priority queues per port
• IEEE 802.1p Queuing method(SPQ/WRR)
• Input priority mapping
• Rate limiting per port(ingress/egress)
• IEEE 802.3x flow control

• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Ethernet
• IEEE 802.3ab (1000BASE-T) Ethernet
• IEEE 802.3x flow control
• IEEE 802.3az EEE support
• IEEE 802.1p CoS support
• IEEE 802.3af PoE (GS1900-8HP/10HP/24HP/48HP)
• IEEE 802.3at PoE plus (GS1900-8HP/10HP/24HP/48HP)
• IEEE 802.1D Spanning Tree Protocol (STP)
• IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
• IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
• Full-duplex and half duplex operation with IEEE 802.3x flow control and backpressure
• Store and forward
• Auto MDI/MID-X

• IEEE 802.1Q VLAN tagging
• IEEE 802.3ad LACP
• Guest VLAN
• Voice VLAN
• Storm control
• IEEE 802.1p priority queues per port
• IEEE 802.1p Queuing method(SPQ/WRR)
• Input priority mapping
• Rate limiting per port(ingress/egress)
• IEEE 802.3x flow control
• IEEE 802.1p class of service(SPQ, WRR)
• Port-based CoS
• IP TOS precedence

• IEEE 802.1x
• Port security
• Layer 2 MAC filtering
• Static MAC forwarding
• RADIUS
• TACACS+
• SSL
• Management VLAN
• CPU defense engine
• DoS prevention
• IEEE 802.1D Spanning Tree Protocol (STP)
• IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
• IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
• IEEE 802.3ad LACP
• Dual configuration files
• Dual images

• IPv6 over Ethernet (RFC 2464)
• Dual-stack (RFC 4213)
• ICMPv6 (RFC 4884)
• Neighbor discovery (RFC 4861)
• Auto configuration
• Static IPv6 address and prefix length
• Static IPv6 default gateway
• IPv6 duplicate address detection
• SNMP v1, v2, v3
• RMON (1, 2, 3, 9)
• ICMP echo/echo reply
• Syslog
• IEEE 802.1AB LLDP
• IEEE 802.1AB LLDP-MED
• LLDP-Power via MDI
• Web interface
• Remote firmware upgrade by Web
• Configuration saving and retrieving
• Firmware upgrade via SNMP
• DHCP client
• Daylight saving
• NTP
• Port mirroring
• Scheduled PoE
• PoE default consumption mode
• Time range group for scheduled PoE

IGMP snooping (v1, v2, v3)

• RFC 1213 MIB II
• RFC 2819 RMON (group 1, 2, 3, 9)
• RFC 1215 generic traps
• RFC 1493 bridge
• Zyxel private common MIB

EMC

• CE, FCC, RCM, Class A
• BSMI CNS 13438

Safety

• LVD LVD EN 62368-1
• BSMI CNS 14336-1

RoHS compliant

Input 100 – 240V AC, 50/60Hz

250 x 104 x 27 mm
